This dialog is used to change the settings for grid labels on the Long Section Window and when setting up interactive tooltips.

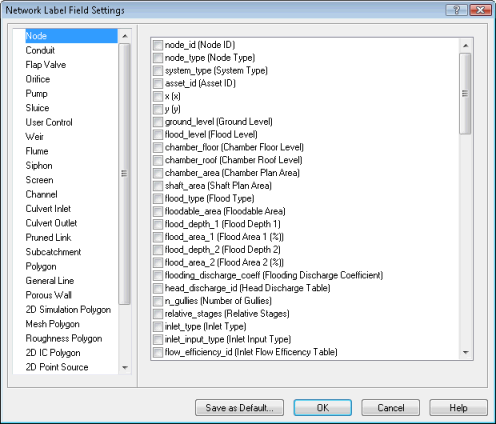

Network Label Field Settings Dialog (example from InfoWorks ICM)
The dialog is displayed when you:
- click Field Settings in the Content Page of the Section Properties dialog
- click Tooltip Fields in the GeoPlan Properties - Auto Labels and Tooltips page
Network object types are listed on the left side of the dialog. Fields applicable to the currently selected object type are displayed on the right. (Note that SQL expressions created via the Layer Theme Editor will also be available in the right.)
Check the box next to a field on the right side of the dialog:
- when editing long section properties, selected fields will be displayed in grid labels on the long section
- when editing GeoPlan properties, selected fields will be displayed in interactive tooltips
Click Save as Default to save the settings in the dialog as the default for all views of the Long Section or the GeoPlan. You will be prompted to confirm the change.
