PTAC w/GAS

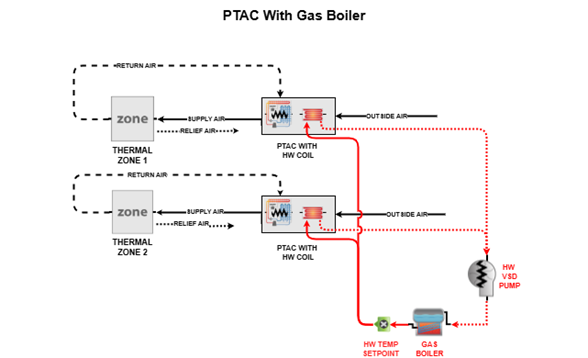

Packaged Terminal Air Conditioner with gas boiler - This system consists of a Packaged Terminal Air Conditioner (PTAC) serving each conditioned thermal zone. The PTAC provides heating using a hot water coil served by a primary only variable flow hot water loop utilizing a natural gas boiler. The default ASHRAE Standard used to set the efficiency of regulated equipment is ASHRAE 90.1-2016.

Packaged Terminal Air Conditioner (PTAC):

Quantity: 1 per conditioned Thermal Zone

Capacity: Auto sized

Cooling: Provided by DX cooling coil

Heating: Provided by Hot Water Coil

Cooling Efficiency: Based on Capacity and ASHRAE Standard

Hot Water Boiler:

Quantity: 1

Capacity: Auto-sized

Type: Natural Gas, Non-Condensing

Controls: Based on Capacity and ASHRAE Standard

Efficiency: Based on Capacity and ASHRAE Standard

Hot Water Pumps:

Quantity: 1

Design Flow: Auto-sized

Type: Variable Speed, 30% minimum flow

Efficiency: Based on Design flow and ASHRAE Standard
