Use the parameters to change the shape of the corner finishes.
| Radius | Defines the radius of the corner finish. |
| Boring out |
Creates a contour of this shape:
|

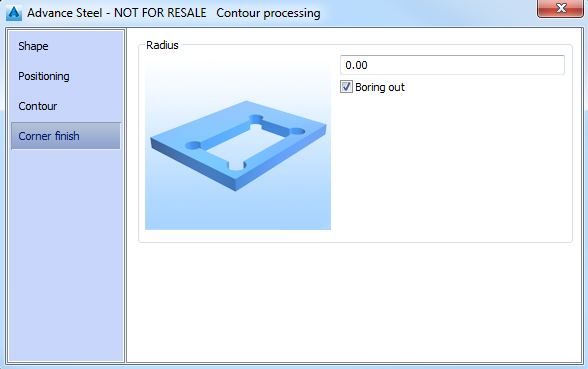

Contour Processing Dialog: Corner Finish Tab
