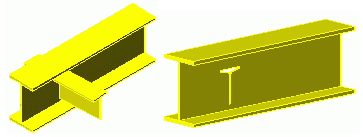

A straight or curved beam is processed through the geometry of another beam or plate. The object contour creates a cope at a straight or curved beam.
Access the command
Features tool palette:
(Element Contour, UCS).
Command line: _AstM4BeamElemContNotch
Process a beam with another element
- Features tool palette:
(Element Contour, UCS).
- Select a beam to modify at a reference end.
- Select an object to use for the cut.
- The contour processing is created.
