Reverse Surface UV

Display direction(s)

• All intersecting – Display the U and/or V direction of all surfaces under the cursor.

• Closest to eye – Display the U and/or V direction of the nearest surface under the cursor.

Surface Reversal Mode

• Reverse U direction – Reverse the direction of the U isoparametric curves.

• Reverse V direction – Reverse the direction of the V isoparametric curves.

• Swap U and V direction – Swap the isoparametric curves so that the U direction becomes the V direction and vice versa.

Reverse, swap, or examine the directions (tangents) of a surface

1. If you want to reverse the direction of several surfaces at once, select them now.

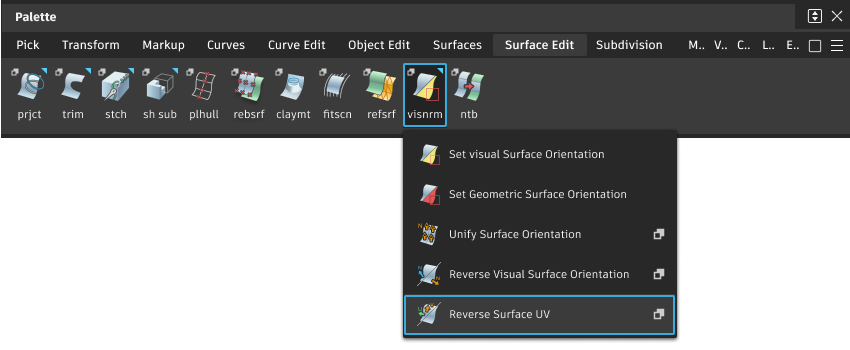

2. Double-click the Reverse Surface UV tool icon.

3. In the option box, choose whether you want to reverse the U direction, the V direction, or swap U and V.

4. Click on the first surface you want to examine or reverse.

   An indicator appears on the surface showing the current tangent(s) (U, V, or both, depending on the option chosen).

5. Do any of the following:

   • Click the and drag over the surface to examine the tangent direction(s).
   • Click the or the Reverse Active button in the window to reverse the surface you clicked.
   • Click the or the Reverse All button in the window to reverse all selected surfaces.

6. Click on another surface and repeat step 5.

   Note: Reversing the direction of the U and V parameters on a surface affects the surface normal, but does not affect the surface orientation.
