Mesh Merge

Combines smaller meshes into one large mesh. When merging meshes, the normals are preserved. This is the recommended behavior for visualization purposes as it ensures a more accurate shading of the model.

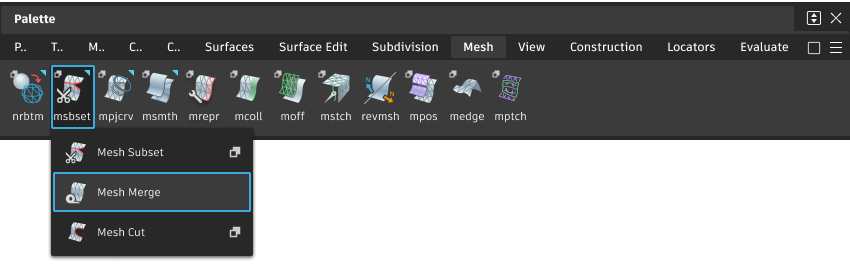

Access this tool from the Mesh tool palette:

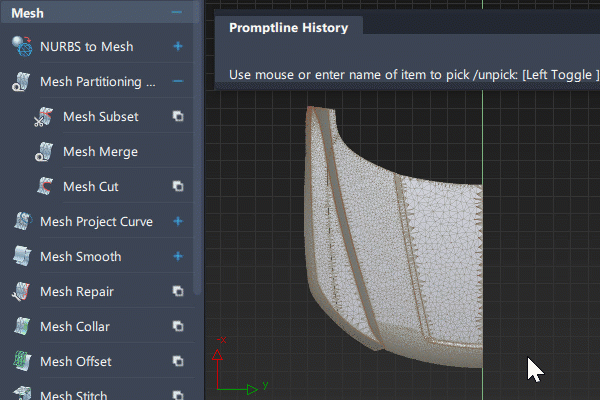

Merge meshes workflow

  1. Select the tool.

  2. Select two or more meshes.

  3. Press the Merge button in the lower right corner of the window.

    The selected meshes are combined into a single mesh object.

    Note: You can continue to select meshes then press Merge until you choose another continuous tool.
Note: To merge all coincident vertices, in the Mesh tool palette, select Mesh Cleanup, then click the Mesh Weld Vertices tool .
