No Perpendicular pass
Perpendicular pass — Deselected.

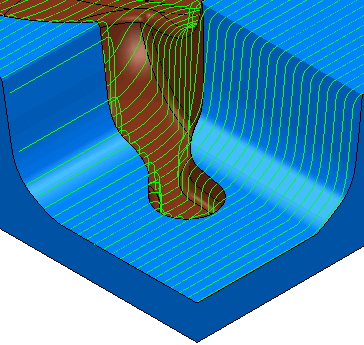

This creates one raster pass over the whole part.
Perpendicular pass, Shallow angle 0
Perpendicular pass — Selected.
Shallow angle — 0.
Optimize parallel pass — deselected.
This creates two perpendicular raster passes over the whole part.
Perpendicular pass, Shallow angle 5
Perpendicular pass — Selected.
Shallow Angle — 5.
Optimize parallel pass — Deselected.
This creates one raster pass over the entire model and a second pass, perpendicular to the first, which machines only the areas of the model that are steeper than the Shallow angle.
Optimize parallel raster
Perpendicular pass — selected.
Shallow angle — 5.
Optimize parallel pass — selected.
Both passes are limited, whereas when the Perpendicular pass is selected and Optimize parallel pass deselected, only the second pass is limited. The first raster pass:
- Machines the flat area.
- Machines the steep sides where it clears the material effectively.
- Is removed from the steep areas where the second pass clears the area effectively.
The second perpendicular pass is restricted to the steep areas where the first pass didn't clear the material effectively.
