Cut plates by a beam or by another plate.
A plate can be processed by a beam or by another plate in two ways:

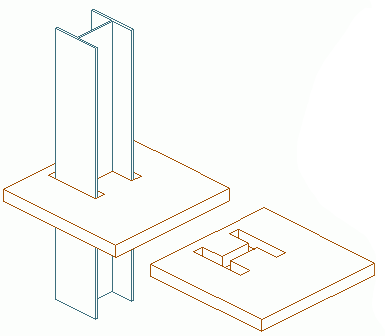

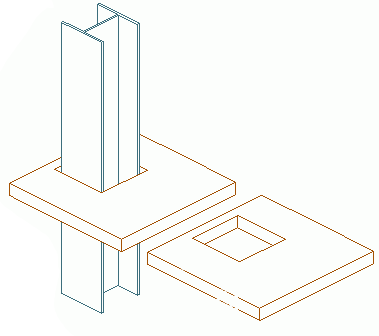

| Exact cross section | Casing cross section |
|
|
Access the command
Features tool palette:
(Element contour).
Command line: _AstM4PlateElementContourNotch
Create an element contour
- From the Objects tab
Switch panel, select the type of processing you need.
Button Function
Exact cross section
Casing cross section - In the Features tool palette, click
(Element contour).
- Select a plate to modify.
- Select an element (i.e. beam or another plate) with which to process the plate.
- The plate is processed. The properties dialog box appears.
