Using this tool you can cut two plates at their bisecting intersection.
Access the command
Features tool palette:
(Miter).
Command line: _AstM4CrConByVB
Cut two plates
- From the Features tool palette, select
(Miter).
- In the properties dialog box select the type of chamfer to apply to the plates.
- Click OK.

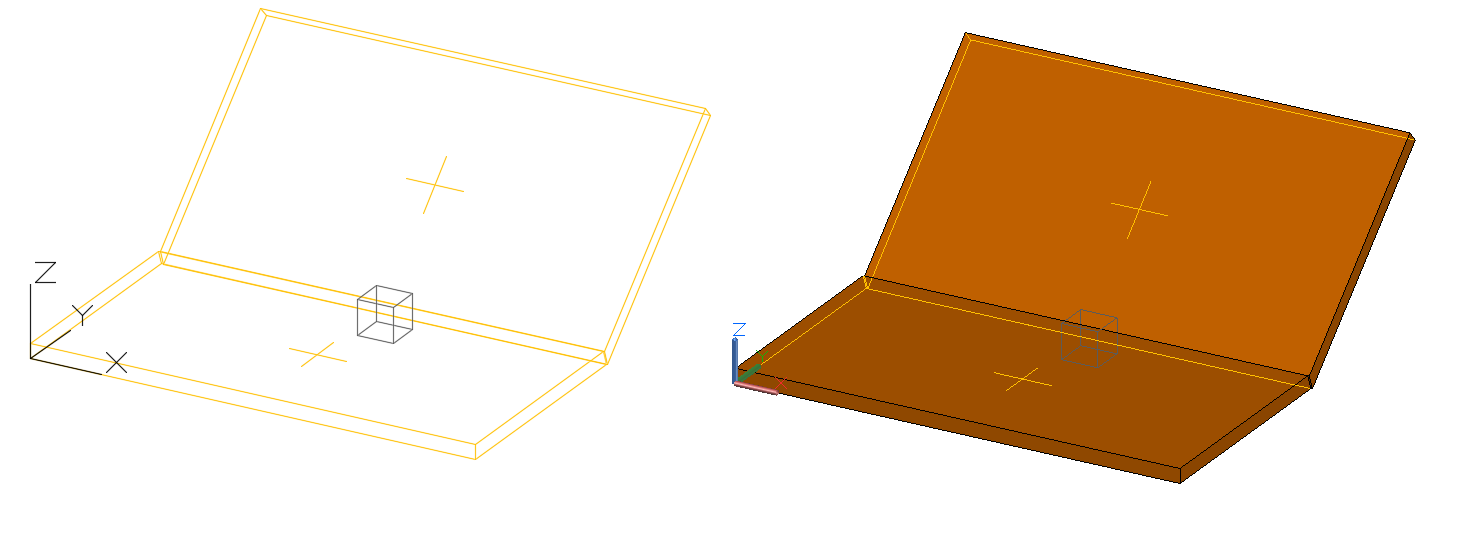

- The plates are cut.
