The Layer RGBA shader can be used to linearly layer up to eight shaders together, enabling you to create complex shading effects. Layers are applied in order (bottom to top) according to a blending mode specified in the operation. The layer alpha can optionally be a separate input. A use for this shader could include adding text to an image for example.

Enable (1-8)

Enable/disable the layer entirely.

Name (1-8)

Layer name.

Input (1-8)

Input value for Layer.

Mix (1-8)

Controls the amount of blending between shaders.

You may need to insert a Range shader when connecting a bitmap to Mix.

Operation (1-8)

The blending mode for the current layer. They emulate all of Nuke and Photoshop's modes. In the formulas, A (Layer 1) is the upstream intermediate result, and B (Layer 2) is the current layer.

• overwrite : B
• atop : A * B.a + B * (1 - A.a)
• average : (A + B) / 2
• cojoint_over : A if A . a > B . a else A + B * ( 1 - A . a ) / B . a
• color_burn : 1 - (1 - A) / B
• color_dodge : A / (1 - B)
• difference : abs(A - B)
• disjoint_over : A + B * (1 - A.a) / B.a, A + B if A.a + B.a < 1
• divide : A / B, 0 if A and B < 0, else A if B < epsilon
• exclusion : A + B - 2 * A * B
• from : B - A
• geometric : 2 * A * B / (A + B)
• glow : B ² / (1 - A)
• hard_light : 1 - 2 * (1 - A) * (1 - B), 2 * A * B if A < 0.5
• hard_mix : vivid_light(A, B) < 0.5 ? 0 : 1
• hypot_diagonal : √(A ² + B ² )
• in : A * B.a
• linear_light : ( B < 0.5 ) ? A + 2 * B - 1 : A + 2 * ( B - 0.5 )
• mask : B * A.a
• matte : A * A.a + B * (1 - A.a)
• max : max(A, B)
• min : min(A, B)
• minus : A - B
• multiply : A * B, A if A and B < 0
• negation: 1 - abs(1 - A - B)
• out : A * (1 - B.a)
• over : A + B * (1 - A.a)
• overlay : hardlight(B, A)
• phoenix : min( A , B ) - max( A , B ) + 1
• pin_light : B < 0.5 ? min( A , 2 * B ) : max( A , 2 * ( B - 0.5 )
• plus : A + B
• reflect : A ² / (1 - B)
• screen : A + B - A * B if A and B in 0..1, else max(A, B)
• soft_light : Softer version of hard_light
• stencil : B * (1 - A.a)
• subtract : A + B - 1
• under : A * (1 - B.a) + B
• vivid_light : B < 0.5 ? color_burn( A , 2 * B ) : color_dodge( A , 2 * ( B - 0.5 )
• xor : A * (1 - B.a) + B * (1 - A.a)

Normal Map

It is possible to blend multiple normal maps using the normal map blending operation.

Alpha Operation (1-8)

Optional alpha value for Layer.

Result : The alpha is computed in the same way as the other color channels (follows the "operation" for the RGB channel).

Preserve : Keeps the old alpha value ( A.a ).

Overwrite : The alpha channel is overwritten by the alpha of the current layer ( B.a ).

Mask : Calculated as: A.a + B.a - A.a * B.a.

Clamp Result

Clamp all intermediate results to [0,1].

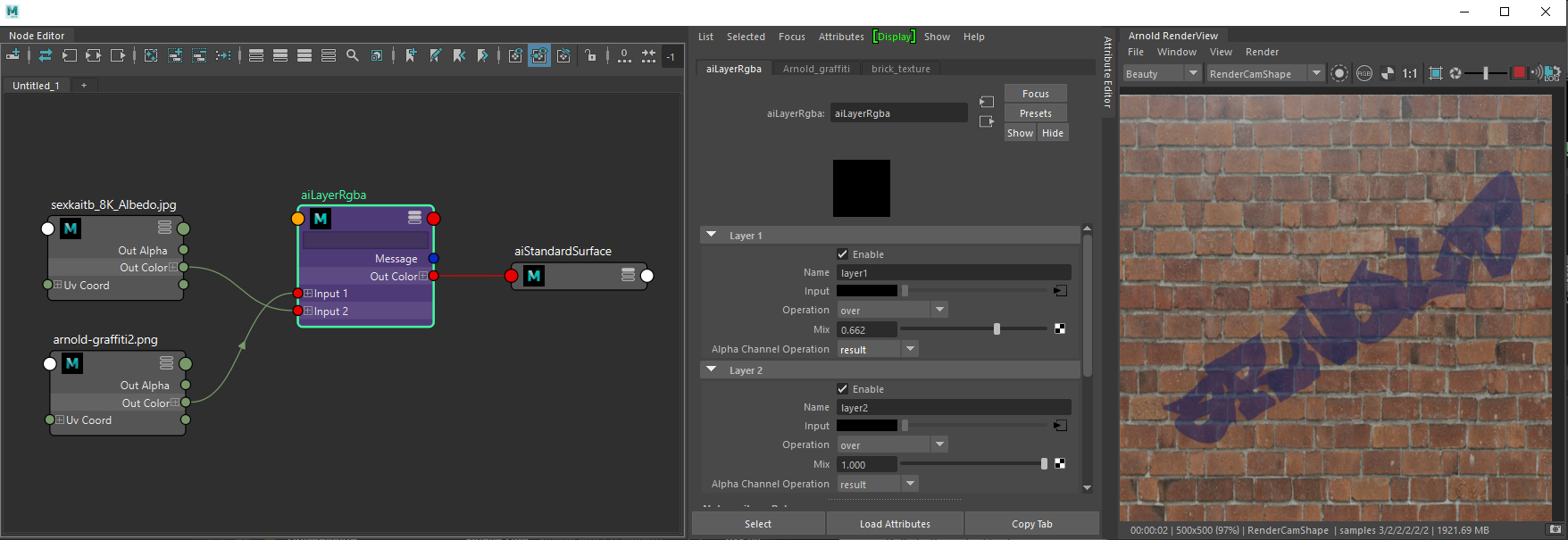

^{_{Example of layer_RGBA shader used to layer a graffiti texture onto a brick texture}}
