Gradient Menu Settings

Setup Settings

Resolution Mode box

Select Resolution List for camera resolutions, Adaptive to set the width and height based on the Frame Aspect Ratio, Scaling Presets for resolution fraction.

Resolution Presets box

Select a resolution. Select Custom Resolution to specify a non-standard resolution.

Adaptive Resolution box

With Width Based on Ratio, Width equals Height multiplied by Ratio. With Height Based on Ratio, Height equals Width divided by Ratio.

Scaling Presets box

Select a resolution as a fraction of the clip.

Width field

Displays the custom width resolution of the clip. Editable.

Height field

Displays the custom width resolution of the clip. Editable.

Aspect Ratio Presets box

Select a standard frame aspect ratio. Select the Set to w:h option to set the clip to use square pixels. Select Custom to define a custom frame aspect ratio in the Aspect Ratio field.

Aspect Ratio field

Displays the custom render/output aspect ratio. Editable

Bit Depth box

Select the render/output bit depth of clips.

Scan Mode box

Select the scan mode of clips.

Icons button

Enable to display vertices, splines, and other gradient selection tools in the image window.

Transparency field

Displays the transparency level of the gradient icons in the image window. Editable.

Vertex Colour Pot

Displays the colour of vertices in the image window. Click to open the colour picker to select a different colour.

Spline Colour Pot

Displays the colour of splines in the image window. Click to open the colour picker to select a different colour.

Amplitude Colour Pot

Displays the colour of amplitude in the image window. Click to open the colour picker to select a different colour.

Type Settings

Gradient Type box

Select the type of gradient to apply. Some of the gradient settings differ based on the gradient type you choose.

Select:	To create a gradient based on:
Directional	A single straight line spline.
Radial	Two circular geometries.
Spline	A spline that can be manipulated with vertices and tangents.
Point	Multiple coloured points.

For each gradient type, you can gesturally create your gradients in the image window with various widgets, such as splines and vertices. Make sure that Show Widgets is enabled in the Gradient Setup menu.

Orientation Settings

Swap UV button

Enable to change the direction of the gradient.

Gradient Controls Settings

Position X field

Displays the position of the gradient along the X axis. Editable.

Position Y field

Displays the position of the gradient along the Y axis. Editable.

Rotation field

Displays the degree of rotation of the gradient. Editable.

Note: You can also manipulate the position and rotation of the gradient directly in the image window if Show Widgets is available.

Scale field

Displays the scale of the gradient. Editable.

Centre field

Directional gradient only: Displays the offset value of the centre of the spline as a percentage of its position on the spline. Editable.

Amplitude field

Directional gradient only: Displays the pixel length of the spline. You can also drag either end of the spline directly in the image window. Editable.

Roundness field

Radial gradient only: Displays the relative shape of the inner and outer circular patterns. A value of 1 displays the full rounded shape, whereas a value of 0 indicates a square shape. You can also enter a negative value to produce a concave shape. Editable.

Sharpness field

Point gradient only: Displays the level of edge sharpness between the gradient point colours. Editable.

Softness field

Displays the level of blur added to the gradient. A higher value produces a smoother transition between gradient colours. Editable.

Extrapolation box

Select an extrapolation type for the gradient pattern.

Select:	To:
Constant	Keep the last value as a solid colour.
Repeat	Repeat the same gradient pattern.
Mirror	Repeat the gradient pattern in reverse order until the frame border is reached.

Offset Cycle field

Displays the cycle position of the colour creating the gradient.

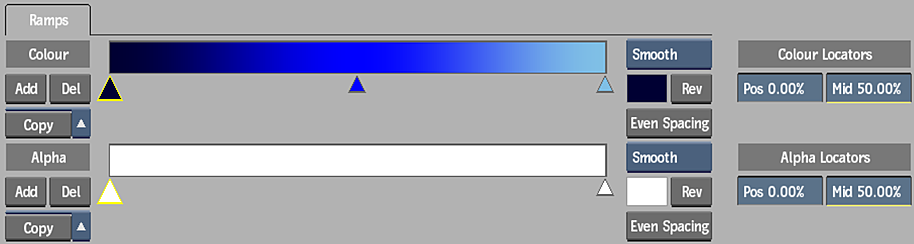

Ramps Settings

Note: The Colour and Alpha ramps are available for Directional, Radial and Spline gradients.

Colour Ramp

Displays the gradations of the gradient colours. The triangles below the ramp represent each colour in the gradient. You can add more colours to your gradient pattern.

A selected triangle’s colour is displayed in the colour pot to the right of the ramp, and its position is displayed in the Position field. Also, when selecting a triangle, a smaller triangle appears representing the mid point between the colour and the next triangles’ colour. You can move the triangles gesturally to achieve different gradations, and move the mid point triangle to shift the weight between the colours.

Colour Add button

Adds a new colour triangle to the right of the currently selected triangle. Press Ctrl while clicking add to clone the selected triangle colour.

Colour Delete button

Deletes the selected triangle.

Colour Ramp Copy list

Select whether to copy the Colour ramp information to the Alpha ramp, or to preserve the Colour ramp information when switching gradient types.

Note: The Alpha ramp under the Colour ramp is identical in functionality, except that it displays gradations in gradient transparency.

Alpha Ramp

Displays the gradations of the gradient transparency. The triangles below the ramp represent each alpha colour in the gradient. You can add more alpha colours to your gradient pattern.

Alpha Add button

Adds a new colour triangle to the right of the currently selected triangle. Press Ctrl while clicking add to clone the selected triangle colour.

Alpha Delete button

Deletes the selected triangle.

Alpha Ramp Copy list

Select whether to copy the Alpha ramp information to the Colour ramp, or to preserve the Alpha ramp information when switching gradient types.

Colour Interpolation Type box

Choose a Linear or Smooth gradient interpolation curve.

Colour Colour pot

Displays the colour of the selected triangle. Click to open the colour picker to select a different colour.

Reverse Colour button

Click to reverse the colours of the gradient proportionally.

Colour Even Spacing button

Click to space the ramp triangles evenly.

Alpha Interpolation Type box

Choose a Linear or Smooth gradient interpolation curve.

Alpha Colour pot

Displays the alpha colour of the selected triangle. Click to open the colour picker to select a different colour.

Reverse Alpha Colour button

Click to reverse the alpha colours of the gradient proportionally.

Alpha Even Spacing button

Click to space the ramp triangles evenly.

Colour Locator Position field

Displays the location of the selected colour triangle along the colour ramp. Editable.

Colour Locator Mid field

Displays the weight level between colours on the ramp (represented by the small triangle). Editable.

Alpha Locator Position field

Displays the location of the selected alpha colour triangle along the alpha ramp. Editable.

Alpha Locator Mid field

Displays the weight level between alpha colours on the ramp (represented by the small triangle). Editable.

Radial Shape Settings

Use these settings if you wish to further affect the shape of a radial gradient.

Note: Radial Shape settings are available when Radial is selected from the Gradient Type box.

Inner Width field

Displays the width of the inner radial circle. You can also gesturally drag the red square on the inner circle. Editable.

Inner Offset X field

Displays the offset along the X axis of the inner radial circle. You can also gesturally drag the + inside the inner circle. Editable.

Inner Offset Y field

Displays the offset along the Y axis of the inner radial circle. You can also gesturally drag the + inside the inner circle. Editable.

Outer Width field

Displays the width of the outer radial circle. You can also gesturally drag the right-most red square on the outer circle. Editable.

Outer Height field

Displays the height of the outer radial circle. You can also gesturally drag the left-most red square on the outer circle. Editable.

Note: Drag the middle red square of the outer radial circle to affect both the width and the height at the same time.

Proportional button

Enable to affect the outer radial width and height proportionally.

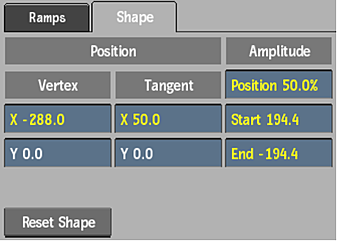

Spline Shape Settings

Use these settings if you wish to further affect the shape of a spline gradient. All of these settings have gestural equivalents in the image window. Ensure that Icons is enabled in the Gradient Setup menu.)

Note: Available when Spline is selected from the Gradient Type box.

Vertex X Position field

Displays the position along the X axis of the selected vertex. Editable.

Vertex Y Position field

Displays the position along the Y axis of the selected vertex. Editable.

Tangent X Position field

Displays the position along the X axis of the selected tangent. Editable.

Tangent Y Position field

Displays the position along the Y axis of the selected tangent. Editable.

Amplitude Position field

Displays the position of the spline as a percentage of the distance between the first and last vertex. Editable.

Amplitude Start field

Displays the start position of the spline. Use to set the pixel length of the spline. Editable.

Amplitude End field

Displays the end position of the spline. Use to set the pixel length of the spline. Editable.

Reset Shape button

Resets the spline shape.

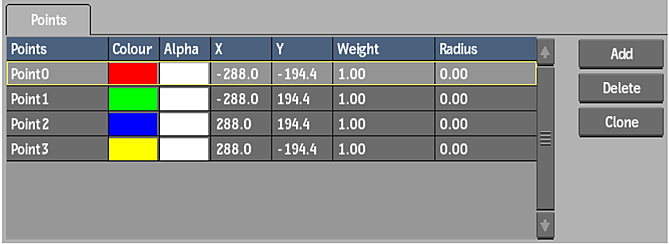

Points Settings

Note: Available when Point is selected from the Gradient Type box.

Points List

Use the rows to set the colour, position, and other settings for each colour of a Point gradient.

Points Column

Displays the number of the point. By default, four points are added to a gradient; however, you can add more.

Colour Column

Displays the colour of the point. Click the colour pot to open the colour picker to select a different colour.

Alpha Column

Displays the alpha colour of the point. Click the colour pot to open the colour picker to select a different colour.

X Column

Displays the position of the point along the X axis. You can also gesturally drag the point in the image window to position it.

Y Column

Displays the position of the point along the Y axis. You can also gesturally drag the point in the image window to position it.

Weight Column

Displays the weight of the colour in relation to the nearest point colour in the image.

Radius Column

Displays the radius of the point colour.

Add button

Adds a new colour point to the list and image.

Delete button

Deletes the selected colour point from the list and image.

Clone button

Clones the selected colour point settings in a new point in the list and image.

Blending Settings

Screen option box

Select a logical operation that can be used to blend the front clip and the result clip.

Transparency field

Displays the percentage of blending when the result is composited on the front clip. Editable.

Gain field

Displays the level of gain applied to the chosen blending option. Editable.

Result Output Settings

Output Mode box

Select whether to output the combined result (with blending), or only the gradient effect itself.

Alpha Output Settings

Alpha Output box

Select whether to output the combined alpha result, or only the gradient effect itself.
