Painted Zone Trigger
The Painted Zone trigger enables to start or stop a behavior by returning true when the position of the root bone of an Entity is contained in a painted zone of a specified color (the painted zone being represented by a Painted Zone locator).
Creation
- Behavior Editor / Trigger
Library:
- Golaem Menu: Crowd Triggers / Triggers / CrowdTri PaintedZone Node
- MEL command: glmCrowdTriPaintedZoneCmd;
Configuration
A Painted Zone Trigger defines the following specific attributes. For common attributes see Trigger Common Attributes.

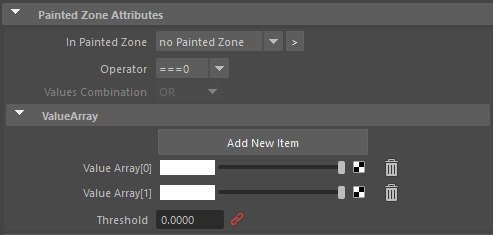

Painted Zone Attributes
| In Painted Zone | Link to the Painted Zone locator to check as a zone. |
| Operator | A comparison operator (equal, greater than…) |
| Value | A reference color value. For comparisons such as "greater than" and "lesser than", it's the hue value of the color which is used (e.g. light blue > blue > dark blue) |
| Threshold | Error allowed between the Painted Zone locator current color and the reference color for the trigger to return true |
