Material Graph/Tags

The Material Editor has two searches, the basic and advanced, which provide a live-search. The basic search includes filtering. The advanced search does not, but its search is based on Python.

Basic Search

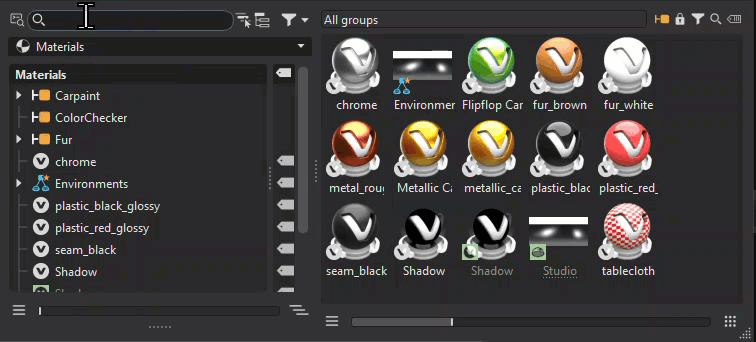

The search field provides live-search capabilities for materials. It is helpful for quickly identifying materials in complex scenes without browsing through a vast list of materials. Search by name. Only single search terms and regular expressions are supported.

Entering one character to show only materials with that character in their name.

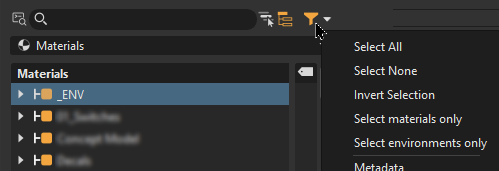

Use to open the Filter Selection menu for configuring the filter settings. Press-hold the icon to open the Filter Selection menu for configuring the filter settings. Use it, for example, to toggle between all materials and all Substance materials.

The menu contains all the ways you can filter materials, from type to the following. Use these filtering options, in conjunction with a search term and/or tag selection, to further define a search.

• Select All - Selects all items, which is the default.



• Select None - Clears the filtering selection, reloading all the materials in the Group Preview. Filtering is automatically deactivating in both the Material Graph and Group Preview.

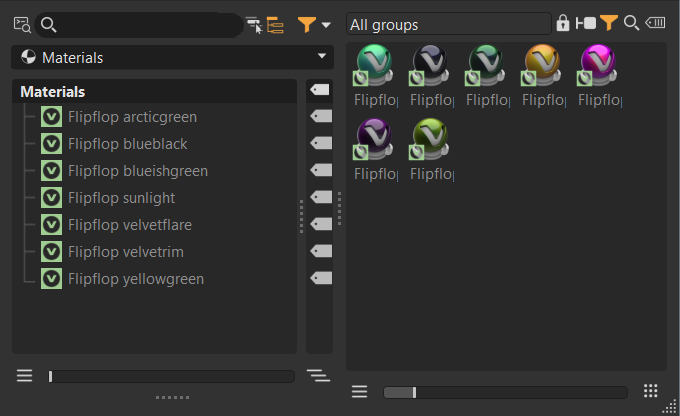

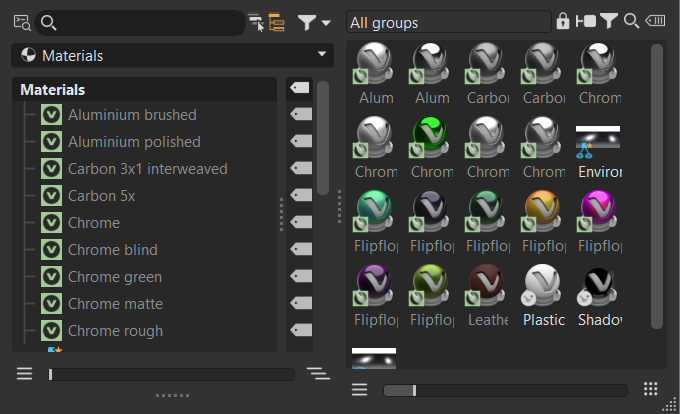

  Filtered	After Select None

• Invert Selection - Deselected all previously selected items, and selects all items previously unselected.

• Select Materials Only - Selects all materials, while deselecting everything else.

• Select Environments Only - Selects all environments, while deselecting everything else.

Filter Search Depth

Use Filter Search Depth to toggle between flat and recursive matching. When disabled, only top-level matches appear. When enabled, matches deeper in the hierarchy appear.

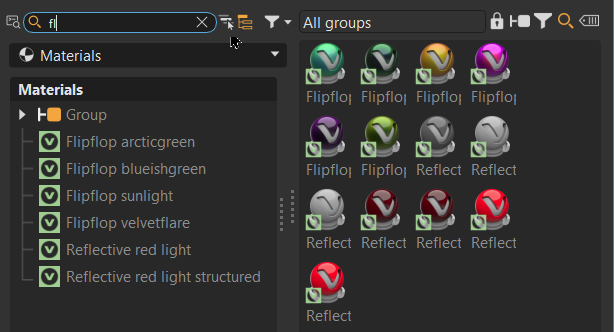

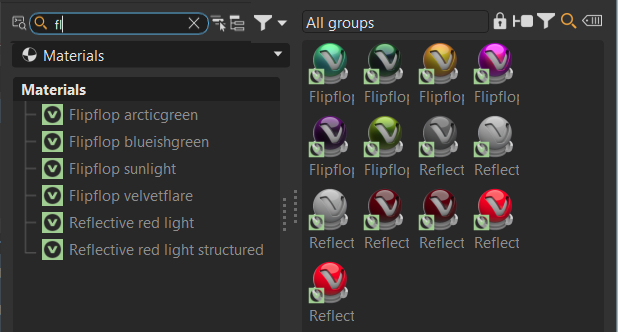

Flat Match	Recursive Match

Advanced Search

For how to use the advanced search, see Using Advanced Search.

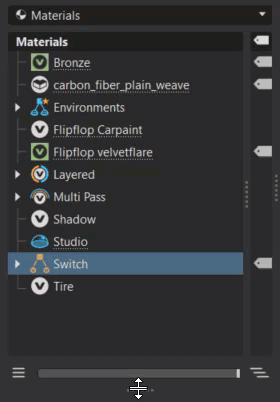

Lists all the materials, environments, switches, and groupings within the scene.

These are the icons you will see in the Material Graph and what they represent.

• Assets dropped from the Asset Manager into the Material Editor are represented by .
• When an asset has been modified, its icon will include .
• If an asset had been deleted from where it was stored, appears at the top of the icon.

Icon	Element
	OCS
	Substance
	Substance Panorama
	GLSL Shader
	X-Rite
	MaterialX
	MDL Material
	Asset
	Layered
	Multi Pass
	VRED Material
	Environment
	Switch
	Environment Switch
	Group

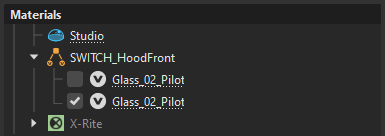

When a material or environment is underlined, this means it is used elsewhere, such as within a hierarchy, like a switch.

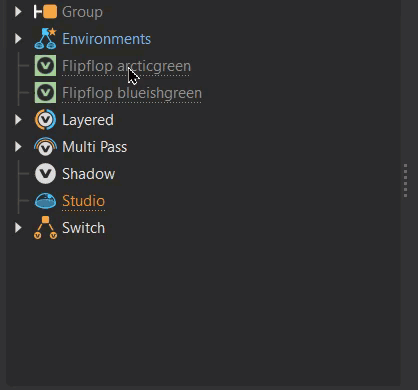

When Select all Occurances is used, the text of parent node containing the selected material is highlighed blue, indicating a copy of the selected underlined material can be found within.

Right-clicking within the Materials Graph accesses the context menu.

Material Groups

Use groups to organize and easily find materials. For Python users, check out the Material Groups documentation.

Material groups can be imported into VRED. Use the Import Group Materials feature, in the File Specific Options of the Import File(s) dialog, to choose whether or not to import MaterialGroup nodes for part files, assemblies, or instances. See Material Group Import for more information.

To set a default state for importing of material groups, see the Import Group Materials section of the Catia V5 preferences.

To create a group, use Create Group, which can be found in the Create and context menus.

When a material group is selected, it affects what is displayed in the Group Preview. See Group Preview for more information on their influence on the Group Preview.

Expansion Column

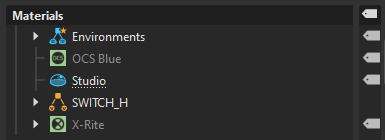

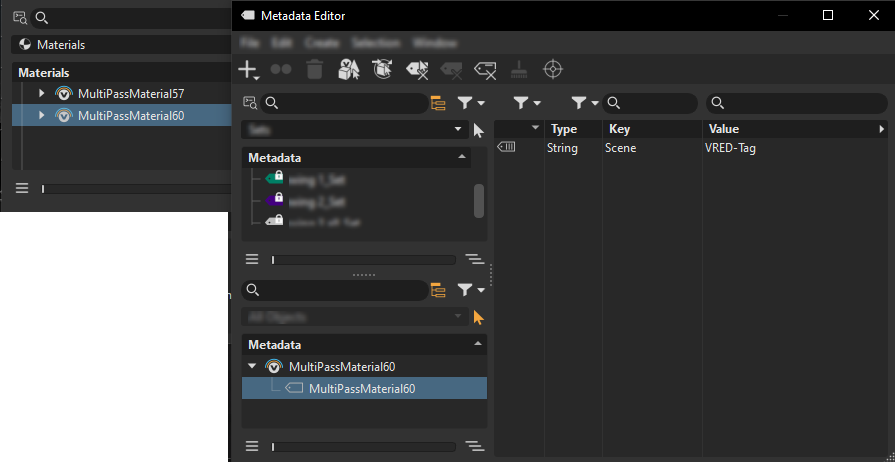

The Expansion Column displays icons showing which nodes contain metadata. The column is tucked into the Material Graph. Pull the grip to expose it. Double-clicking an icon opens the Metadata Editor, loading the node into the lower list.

Select Tags from the Material and Tags Selector dropdown to display the Tag Lister. It lists all tags found in the scene materials.

How it Works

Use tags in conjunction with a search term and/or filters to further define a search.

Clicking a tag filters the Group Preview, displaying only the materials within the selected tag.

Clicking an empty space in the Tag Lister, resets Group Preview, displaying all materials.

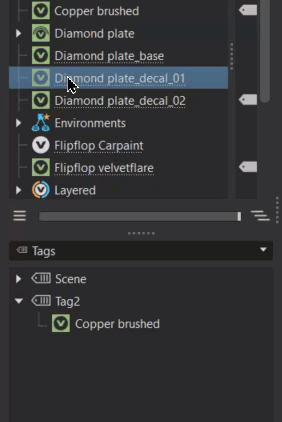

Click-dragging one or more materials onto a tag adds them to that tag.

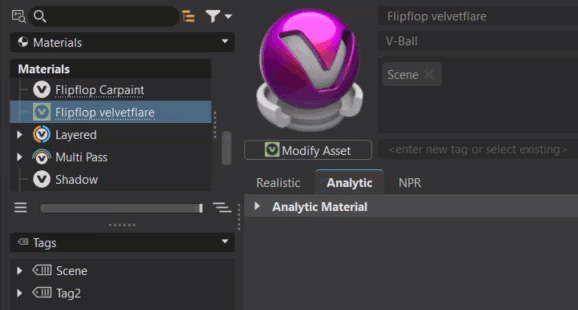

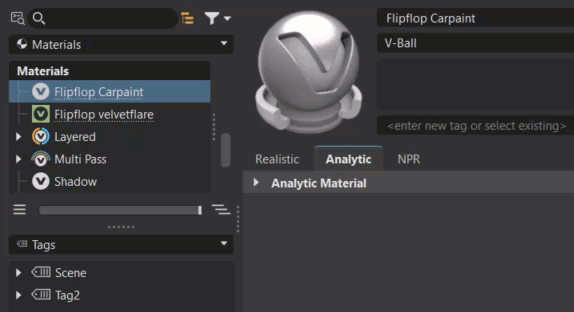

Doing either of these adds a tag to a material:

• RMB-dragging a tag onto a material in the Material Graph.



• RMB-dragging a tag from the Tag Lister and dropping it into the Attributes Tags field.



Tag Lister Context Menu

Right-click within the Tag Lister to access the following options:

• Rename Tag - Makes the tag name editable. Edit the name and press Enter.
• Remove Selected Material(s) - Removes the selected material from the Tag Lister and Material Editor.
• Remove All Materials - Removes all materials from the Tag Lister and Material Editor.
