Mesh Boundaries
Creates degree 1 NURBS curves from selected mesh boundaries.

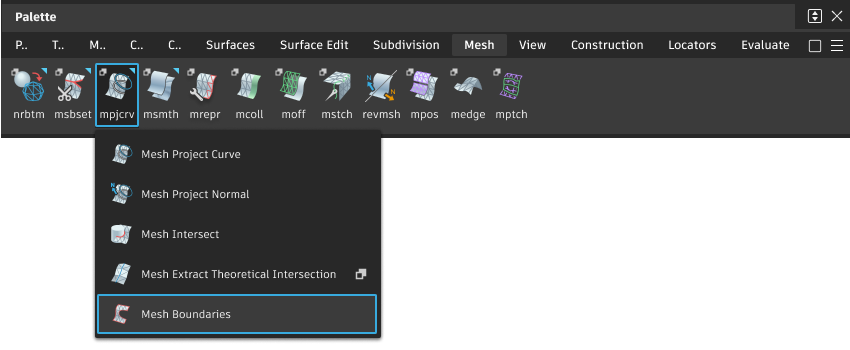

Access this tool from the Mesh tool palette:
Mesh Boundaries workflow
Select the tool.
Select a mesh.
All the mesh boundaries are highlighted in green.
Do one of the following:

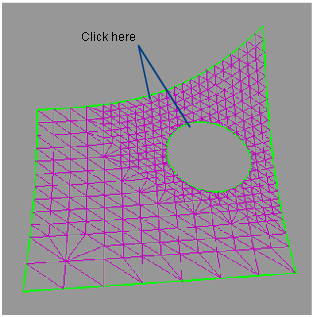

Click on the boundary or boundaries you want to extract (they turn yellow), then press the Extract button at the bottom of the window.
Press the Extract All button at the bottom of the window to extract all boundaries.

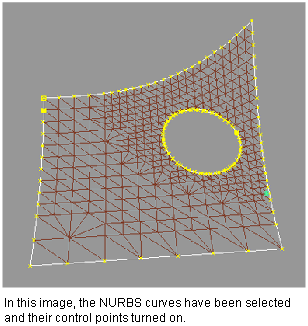

One or more degree 1 NURBS curves are created and overlap the boundaries of the mesh.
