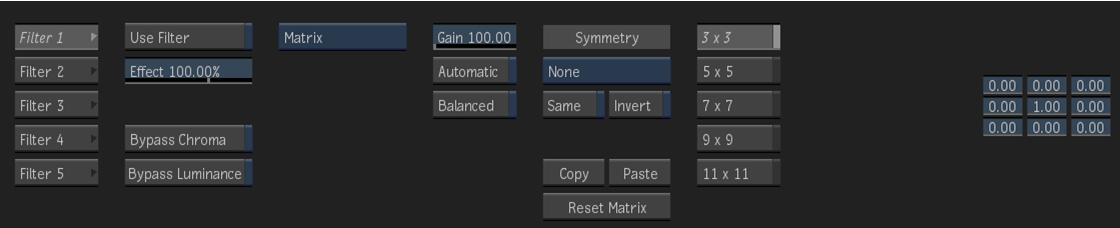

General Settings

Filter 1 button

Modifies the set of image operations in the first filter element that is applied in the final composite filter.

Filter 2 button

Modifies the set of image operations in the second filter element that is applied in the final composite filter.

Filter 3 button

Modifies the set of image operations in the third filter element that is applied in the final composite filter.

Filter 4 button

Modifies the set of image operations in the fourth filter element that is applied in the final composite filter.

Filter 5 button

Modifies the set of image operations in the fifth filter element that is applied in the final composite filter.

Use Filter button

Enable to apply the filter element to the final composite filter.

Effect field

Displays the level of filtering required. Editable.

Bypass Chroma button

Enable to ignore hue and saturation channels of an image.

Bypass Luminance button

Enable to ignore luminance channels of an image.

Filter Type box

Select whether to use matrix calculations or a predefined procedure to alter the image.

Matrix Settings

Gain field

Displays the light values of the image. Editable.

Automatic button

Enable to preserve the average luminance of the clip.

Balanced button

Enable to activate a compensating algorithm when a value is entered in the matrix, where the value is divided by the remaining fields, and then the result is subtracted from each value in the matrix.

Symmetry Type box

Select an arrangement used to change symmetrical elements.

Same button

Enable to change a symmetrical field to the same value as a field that is being edited.

Invert button

Enable to change a symmetrical field to the equal and opposite value as the field value that is being edited.

Copy button

Click to copy the current matrix setup.

Paste button

Click to paste a copied matrix setup.

Reset Matrix button

Reset all values in the matrix.

3x3 button

Enable to apply a matrix of three rows and three columns. The field in the centre represents the pixel that is currently being evaluated; the others represent surrounding pixels. The matrix displays the relative influence of each pixel surrounding the current one.

5x5 button

Enable to apply a matrix of five rows and five columns. The field in the centre represents the pixel that is currently being evaluated; the others represent surrounding pixels. The matrix displays the relative influence of each pixel surrounding the current one.

7x7 button

Enable to apply a matrix of seven rows and seven columns. The field in the centre represents the pixel that is currently being evaluated; the others represent surrounding pixels. The matrix displays the relative influence of each pixel surrounding the current one.

9x9 button

Enable to apply a matrix of seven rows and seven columns. The field in the centre represents the pixel that is currently being evaluated; the others represent surrounding pixels. The matrix displays the relative influence of each pixel surrounding the current one.

11x11 button

Enable to apply a matrix of eleven rows and eleven columns. The field in the centre represents the pixel that is currently being evaluated; the others represent surrounding pixels. The matrix displays the relative influence of each pixel surrounding the current one.

Procedural Settings

Invert button

Enable to invert the image.

Rect button

Enable to blur the image.

Width field

Displays the height of the blur. Editable.

Height field

Displays the width of the blur. Editable.

Sobel button

Enable to apply an edge-detection filter that uses the Sobel operator.

Sobel Direction box

Select the direction in which the filter is applied.

Prewitt button

Enable to apply an edge-detection filter that uses the Prewitt operator.

Prewitt Direction box

Select the direction in which the field is applied.
