Resize Menu Settings

To see the full Resize menu, click the Editor button.

Select between resizing or cropping the clip.

Displays the Resizing or Crop Box quick menu.

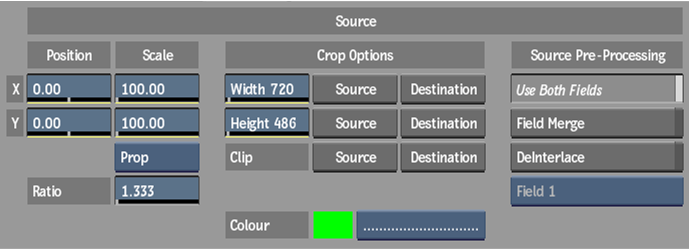

Source Settings

Use the Source settings to set or animate the position and size of the crop box.

Position/Scale Settings

X Position field

Displays the horizontal position from the centre of the crop box relative to the centre of the source frame, in pixels. Drag left or right, or click to enter a new X Position value.

Y Position field

Displays the vertical position from the centre of the crop box relative to the centre of the source frame, in pixels. Drag left or right, or click to enter a new Y Position value.

X Scale field

Displays the horizontal scale of the crop box relative to the Crop Box Width field value, as a percentage. Drag left or right, or click to enter a new X Scale value.

Y Scale field

Displays the vertical scale of the crop box relative to the Crop Box Height field value, as a percentage. Drag left or right, or click to enter a new Y Scale value.

Crop Mode box

Select an option to determine the scaling behaviour of the crop box while repositioning or rescaling. Use Free to adjust the crop box freely. Use Prop to use the current Crop Box Width and Crop Box Height settings proportionally. Use Source or Destination to use the respective aspect ratio for the crop box.

Pixel Ratio button

Enable for anamorphic media to use the pixel ratio of the source to calculate the value of the crop box. Available when Crop Box Ratio is set to Free.

Source Ratio field

Displays the aspect ratio of the crop box in the source frame. Editable.

Crop Options Settings

Crop Box Width field

Displays the current width setting of the crop box, in pixels. Editable.

Crop Box Height field

Displays the current height setting of the crop box, in pixels. Editable.

Source Width button

Uses the width settings of the source frame for the Crop Box Width field.

Source Height button

Uses the height settings of the source frame for the Crop Box Height field.

Source Frame button

Uses the width and height settings of the source frame for the Crop Box Width and Crop Box Height fields, respectively.

Destination Width button

Uses the width settings of the destination frame for the Crop Box Width field.

Destination Height button

Uses the height settings of the destination frame for the Crop Box Height field.

Destination Frame button

Uses the width and height settings of the destination frame for the Crop Box Width and Crop Box Height fields, respectively.

Crop Box Border colour pot

Displays the current colour of the crop box border. Editable.

Crop Box Line Style box

Select the line style for the crop box.

Source Pre-Rendering

Source Pre-Rendering buttons

Select a conversion method to use for the resize. Use the Both Fields button when both source and destination formats are interlaced or progressive. Use the Field Merge button to combine the two fields of the source clip. Use the Deinterlace button to select one field, in which case the Source Pre-Rendering Field box is enabled.

Source Pre-Rendering Field box

Select a field to use for the resize. Active when the Deinterlace Source Pre-Rendering button is enabled.

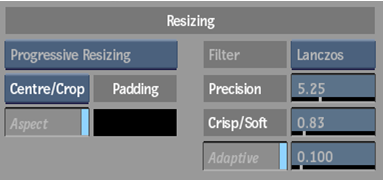

Resizing Settings

Use the Resize settings to change the size of a clip.

Resize Field Format box

Select an option to determine whether the resize is performed on progressive or interlaced frames, if both source and destination clips are interlaced. If either clip is progressive, the resize operation is always progressive.

Fit Method box

Select a fit method to be applied to the selected clip.

Select:	To fit:
Centre	The source image, centred, over the destination resolution frame. If the source is larger than the destination, it is cropped. If the source is smaller than the destination, it is surrounded by a black border.
Crop Edges	One edge of the source into the destination resolution frame without stretching or squashing the frame. Excess parts of the source frame after resizing are cropped. If the source—after the one edge is resized—is wider than the destination, its overhanging left and right edges are cropped. If the source is taller than the destination, the upper and lower edges are cropped.
Fill	The source, width, and height, into the destination resolution frame. This process, if the source and destination resolutions do not have the same aspect ratio, can distort the image.
Letterbox	The source to the destination resolution frame without squashing or stretching it, and without cropping the source. If the source is wider than the destination, black bars fill the top and bottom of the destination frame. If the source is narrower than the destination, black bars fill the right and left sides of the frame. In all cases, the entire source frame is fit into the destination frame.

Precision field

Displays the frequency cut-off point used during resize. Editable.

Crisp/Soft field

Displays the amount of blurring used during resize. Editable.

Select the filter option to determine the quality of the interpolated resize result.

Aspect button

Enable to use non-square pixel formats. Active when Fit Method is set to Crop Edges or Letterbox.

Destination Padding colour pot

Displays the colour used for padding the destination frame when the source image is smaller than the destination. Editable.

Adaptive Deinterlacing button

Enable to use data from the adjoining interlaced field to improve the results of the resizing algorithm. This is most effective for clips containing stationary objects.

Adaptive Deinterlacing field

Displays the amount of data used from the adjoining field for adaptive interlacing during resize. Active when Adaptive button is enabled.

Destination Settings

Use the Destination settings to define the format of the resized clip.

Resolution Mode box

Select Resolution List for camera resolutions, Adaptive to set the width and height based on the Frame Aspect Ratio, Scaling Presets for resolution fraction.

Resolution Presets box

Select a resolution. Select Custom Resolution to specify a non-standard resolution.

Adaptive Resolution box

With Width Based on Ratio, Width equals Height multiplied by Ratio. With Height Based on Ratio, Height equals Width divided by Ratio.

Scaling Presets box

Select a resolution as a fraction of the clip.

Width field

Displays the custom width resolution of the clip. Editable.

Height field
