Regen button

Enable to dynamically refresh the image as changes are made to the settings.

Repeat Mode Settings

Repeat Mode options box

Select an option to fill the empty portions of the frame.

Range Settings

Range From field

Displays the beginning of the range of frames that to be impacted by the effect. Editable.

Range To field

Displays the end of the range of frames that to be impacted by the effect. Editable.

Range Before box

Select an option to be applied before the set frame range. Bypass eliminates the effect, while Cycle repeats the effect.

Range After box

Select an option to be applied afer the set frame range. Bypass eliminates the effect, while Cycle repeats the effect.

Effects Settings

Crumple Distortion button

Enable to activate the crumple settings.

Amplitude field

Displays the amount of distortion. Increase the value to increase the crumple effect. Editable.

Time Offset field

Displays the time offset interval of the crumpling. Editable.

Octaves field

Displays the number of layers summed in the operation, from 0 to 10. Increase the value to increase the fractal crumple effect. Editable.

Blur button

Enable to activate the blur settings.

Amount field

Displays the amount of blur applied to the image. Editable.

2D Transform Settings

Active button

Enable to activate the 2D Transform settings.

Show Icons button

Enable to display the vertex editing tools in the image window.

Position X field

Displays the horizontal position of the transformation. Editable.

Position Y field

Displays the vertical position of the transformation. Editable.

Centre X field

Displays the centre point value of the transformation along the horizontal axis. Editable.

Centre Y field

Displays the centre point value of the transformation along the vertical axis. Editable.

Scale X field

Displays the horizontal scale factor. Editable.

Scale Y field

Displays the vertical scale factor. Editable.

Proportional button

Enable to scale X and Y values proportionally.

Rotation field

Displays the rotation of the transformation. Editable.

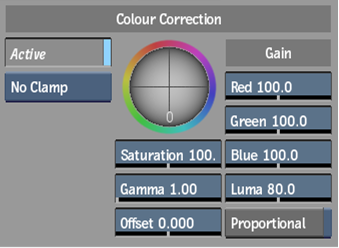

Colour Correction Settings

Activate button

Enable to activate the color correction settings.

Clamping box

Select a clamping option.

Gain Trackball

Adjusts the gain of the input.

Saturation field

Displays level of colour purity in the image. Editable.

Gamma field

Displays the gamma level. Editable.

Offset field

Displays a value that modifies all of the colour parameters. Editable.

Red Gain field

Set the percentage of colour values in the red channel. Editable.

Green Gain field

Set the percentage of colour values in the green channel. Editable.

Blue Gain field

Set the percentage of colour values in the blue channel. Editable.

Luma Gain field

Set the percentage of luma gain value to display. Editable.

Proportional button

Enable to adjust the gain of the colour values proportionally.

Blending Settings

Blending options box

Select a logical operation that can be used to blend the front clip and the result clip.

Transparency field

Displays the percentage of blending when the result is composited on the front clip. Editable.

Use Matte button

Enable to apply the effect with the areas defined by the matte.

Rendering Settings

Clamp Render box

Select a clamping option for colour and luminance values on output in the 16-bit floating point rendering pipeline.

Matte Output Settings

Matte Output options box

Select an matte output option. Choose Selective to select the colour you wish to keep.

Selective Tolerance field

Displays the tolderance level of the selected colour of the matte output. Editable.

Available when Selective is chosen in the Matte Output options box.

Selective Colour box

Click to enable the crosshair to select a colour in the image to be used as the matte output.

Available when Selective is chosen in the Matte Output options box.
