Motion Analysis Menu Settings

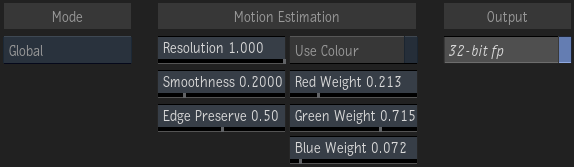

Global Mode Settings

Params Settings

Resolution field

Defines the scale of the image to consider in the analysis, 1 being full resolution.

Force 32-bit button

Output a 32bit even if the input resolution is not 32bit

Smoothness field

Controls the spatial coherence of the generated movement.

Edge Preserve field

Constrains the motion analysis to respect the edge information.

Advanced Settings

Red Weight field

Controls the contribution of the Red pixels.

Green Weight field

Controls the contribution of the Green pixels.

Blue Weight field

Controls the contribution of the Blue pixels.

Colour button

Enable to use colour information. When disabled, RGB weights are used to compute the luminance of the input images.

Local Mode Settings

Quality box

Select Use Full Resolution to render the image at the current resolution, or an option with decreased motion analysis accuracy and increased rendering speed.
