To extrude surfaces

General workflow

1. Select the triangles or surfaces to extrude.
2. From the menu, choose Extrude surfaces.
3. Choose the extrusion type.
4. Adjust direction and distance as needed
5. Click Apply to complete the extrusion.

Extrusion reference

Extrusion types

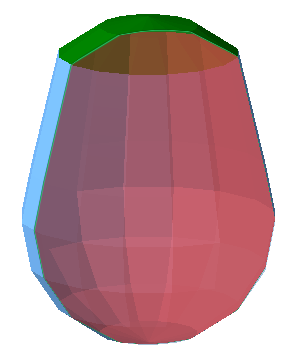

• Normal extrusion keeps the selected triangles and their sizes intact and shifts the nodes equally along parallel lines.

  Normal extrusion works well with surfaces of any triangle composition.

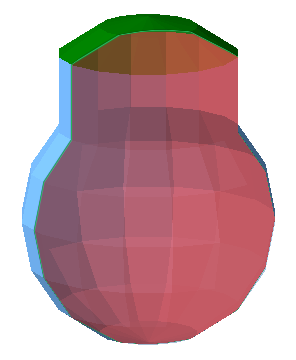

• 3D extrusion transposes surfaces along vertex normals (the average of the verticals on the triangles surrounding a common node), making extruded surfaces wholly thicker or thinner.

  3D extrusion works best on finely meshed, organically shaped models. Hard, distinct edges, large or long and narrow triangles can produce undesirable distortion. To mitigate such effects, try limiting the extrusion to areas to exclude distinct edges, and refine the mesh or remesh entirely before extruding.

Alignment help (Normal extrusion only)

• Shift-drag to lock the extrusion distance and only adjust the direction.
• Ctrl-drag to lock the direction and only adjust the extrusion distance.
• Double-click any triangle on the part to align the extruded surface parallel to the clicked triangle.
• Double-click the triangle again to invert the extrusion by 180°.
• The same behavior occurs when you double-click on an edge of the part.

Extrusion variants

• Real extrusion: Creates new triangles to create the extrusion
• Move points: Moves the points of the selected triangles, rather than creating new triangles.
• Thickening (3D extrusion only): Performs a real extrusion and also generates an inverted copy of the original unextruded shell or triangle selection.
  Note: If the original selection involved only a section instead of an entire shell, the new shell is technically invalid and you may need to address the non-two-manifoldness of triangles at the seam.

3D extrusion modifiers

• Smooth considers the extrusion direction of the surrounding triangles. This helps to limit the contrast between the extruded surface and the adjacent surfaces.
• Improved takes the size of the selected triangles into account. The extrusion direction is determined primarily by the larger triangles.

Both modifiers only apply a small correction.

Normal direction options

• Specify numerical values for the three cardinal axes of the buildroom. These work in conjunction with the Distance slider and input field: By specifying axis components, the total distance is updated, and by specifying a total distance, the axis components are updated.
• Estimate direction: By considering the direction of the verticals (normals) over all selected triangles, weighted by their sizes, a common direction is determined.

3D direction options

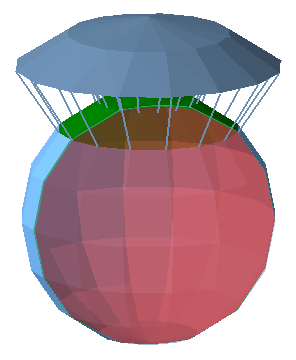

• X, Y, Z, By face normal: These are toggled switches. By using them, you lock the direction in which the extrusion must not happen. Click the button to enable the lock, click it again (or click another one) to disable the lock. Only one switch can be locked at any time.

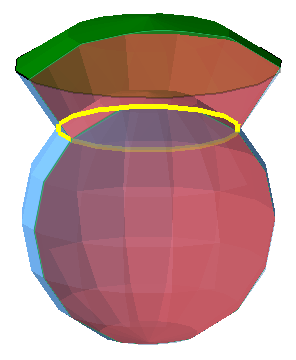

• After clicking By face normal, you may click one triangle on the part to determine the direction of locking from the chosen triangle. Click the button again to remove the lock.
