ValleyGutter

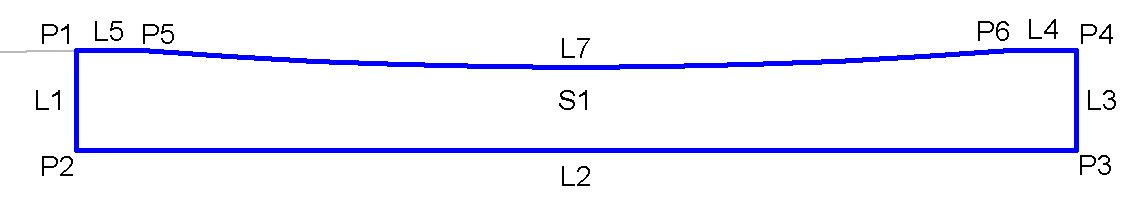

The ValleyGutter subassembly is a concrete arched valley gutter. You can define width and curvature by selecting from predefined geometries.

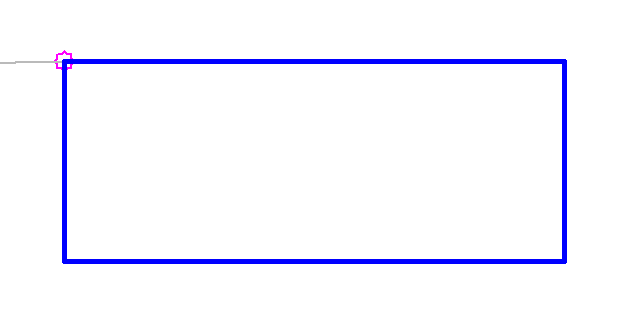

Case IIA1:

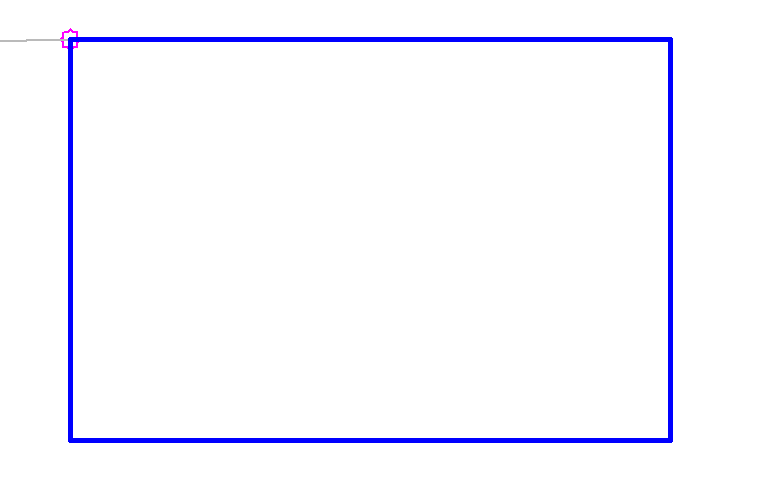

Case IIB1:

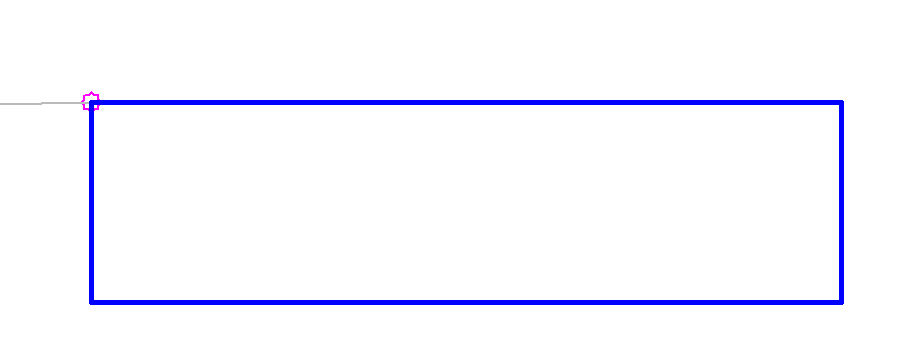

Case IIC1:

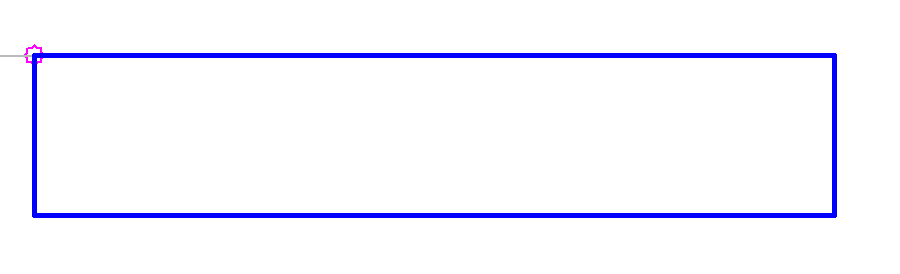

Case IID1:

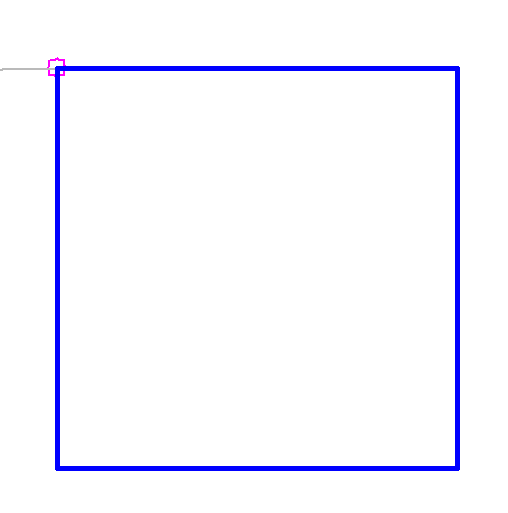

Case IIE1:

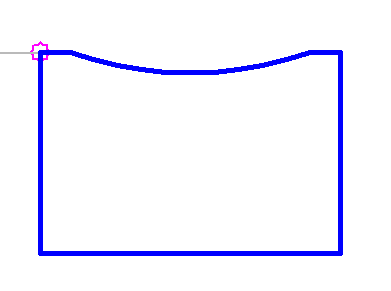

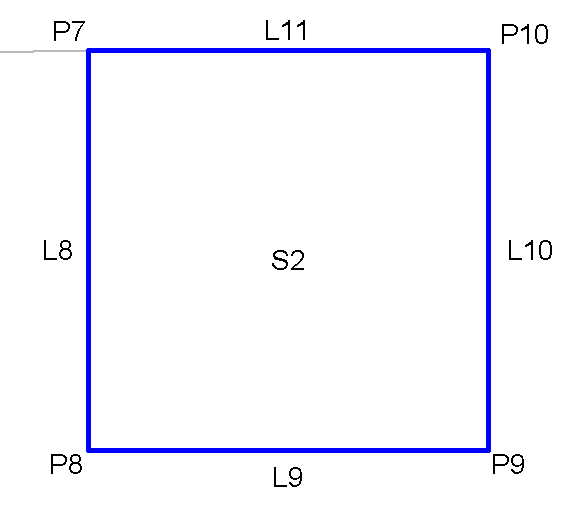

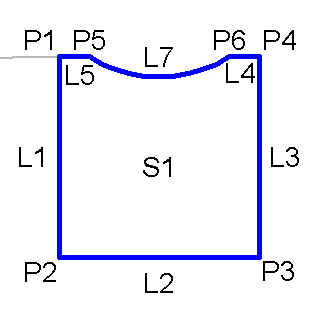

Case IIA2:

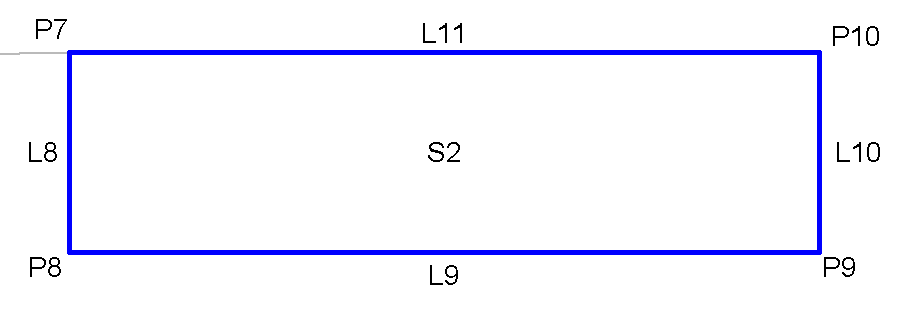

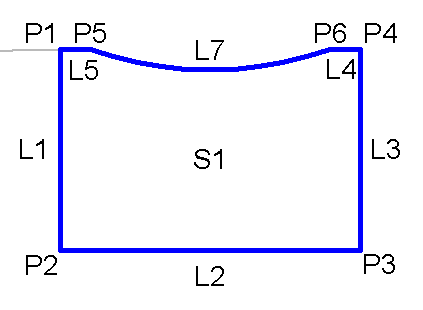

Case IIB2:

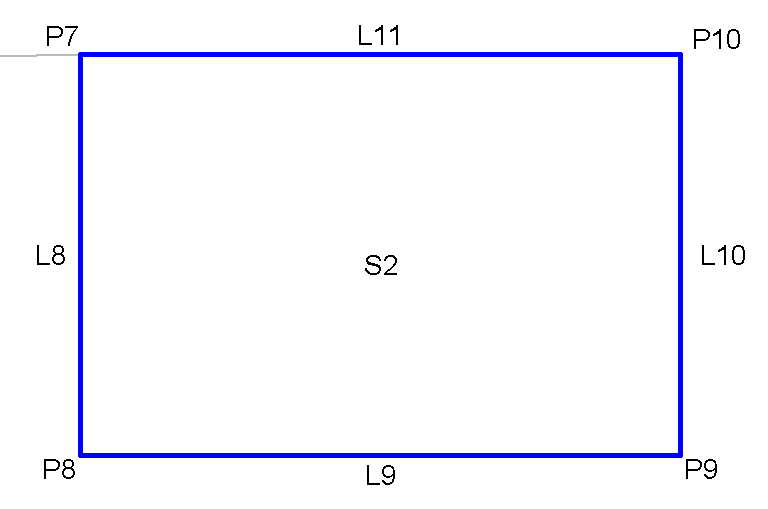

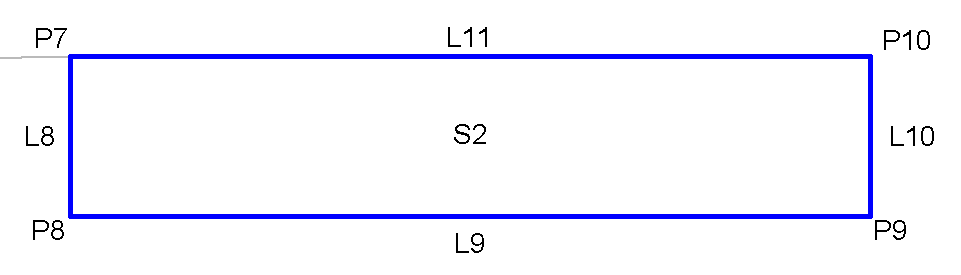

Case IIE2:

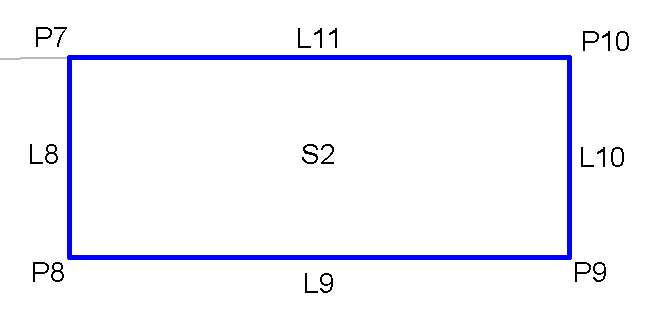

Case IID2:

Attachment

The attachment point is at the inside point of the valley gutter.

Input Parameters

Note: All dimensions are in meters or feet unless otherwise noted. All slopes are in run-over-rise form (for example, 4 : 1) unless indicated as a percent slope with a “%” sign.

Parameter	Description	Type	Default
Side	Specifies which side to place the subassembly.	Left/Right	Right
Datum Link Code	A list of codes to be assigned to the formation link.	Comma-separated string	Formation
Top Link Code	A list of codes to be assigned to the top link.	Comma-separated string	Top
Shape Code	A list of shape codes to be assigned for the shapes formed, if any, by this subassembly.	Comma-separated string	Band
Type Band	Specifies the shape of the valley gutter.	IIA1, IIB1, IIC1, IID1, IIE1, IIA2, IIB2, IIE2, IID2	IIA2

Target Parameters

None.

Runtime Logical Assignments

None.

Output Parameters

None.

Behavior

This subassembly will insert a valley gutter shape specified in the input parameters. All dimensions are set within the subassembly.

Layout Mode Operation

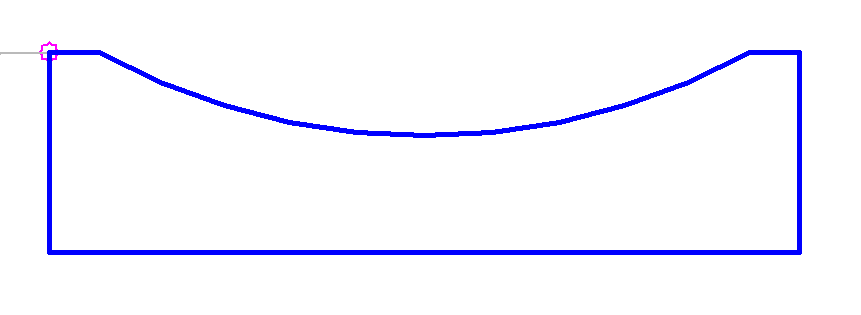

In layout mode the subassembly displays the links comprising the selected valley gutter type.

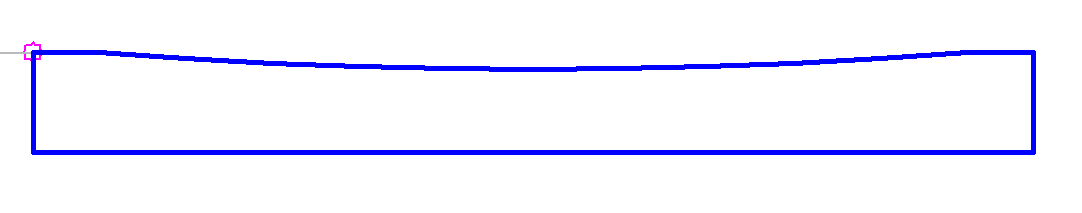

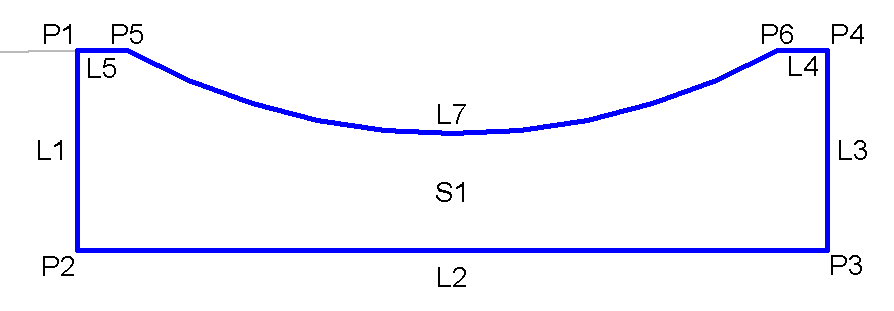

Point, Link, and Shape Codes

The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.
