The EvenSlopeDitch subassembly creates a ditch to add to either the left or the right sides of the assembly.
Attachment
The attachment point is at the inside edge of the first link.
Input Parameters
|
Parameter |
Description |
Type |
Default |
|---|---|---|---|
|
Side |
Specifies which side to place the subassembly. | Left/Right |
Right |
|
Ditch Depth |
The depth of the bottom of the ditch from the attachment point to the bottom of the foreslope link. | Numeric, positive |
3 ft 1 m |
|
Slopes |
The slope of the sides of the ditch. | Numeric, positive |
2 (: 1) |
|
Ditch Width |
Width of the ditch. | Numeric, positive |
2 ft 0.6 m |
Target Parameters
None.
Runtime Logical Assignments
None.
Output Parameters
None.
Behavior
The subassembly builds the shape for a ditch using the input parameters.
Layout Mode Operation
In layout mode the subassembly displays the links comprising the ditch using the input parameters.
Point, Link, and Shape Codes
The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.
|
Point, Link, or Shape |
Code |
Description |
|---|---|---|
| P1 | Hinge, Top | Hinge point |
| P2 | Ditch_In, Bottom_Ditch | Bottom inside of ditch |
| P3 | Ditch_Out, Bottom_Ditch | Bottom outside of ditch |
| P4 | Hinge | |
| L1 | Top, Datum, Ditch, Foreslope, Slopes | Foreslope |
| L2 | Top, Datum, Ditch | Bottom ditch |
| L3 | Top, Datum, Ditch, Backslope | Backslope |

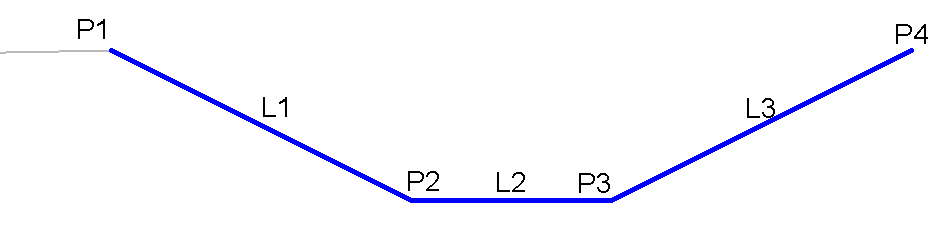

Coding Diagram
