Section Finished Part Dialog - ZY Plane (PartMaker)

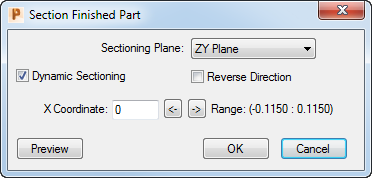

This dialog enables you to perform sectioning in ZY Plane along X-axis.

Sectional Plane — Select the plane in which you want to make the section.

Dynamic Sectioning — Select to enable you to dynamically section the part using the arrow buttons .

Reverse Direction — Select to reverse the direction in which the part is sectioned.

— Click to increment/decrement the X coordinate value and perform dynamic sectioning along the X-axis. The sectioning increment/decrement is 1% of the total length of the finished part along X- axis.

For example: If finished part length is 0.23 along X-axis then each click either of these buttons will section the part by 0.0023.

Note: If Dynamic Sectioning is not checked clicking on these buttons will modify X Coordinate only.

X Coordinate — Specify the X Coordinate where the part will be sectioned.

Range — The min and max coordinates of the part along X-axis are displayed. If the X Coordinate is out of range, PartMaker displays an error message.

Preview — Click to preview sectioning at the specified X Coordinate.

OK — Click to section the finished part and close the dialog.
