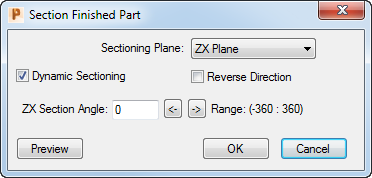

Section Finished Part Dialog - ZX Plane (PartMaker)

This dialog enables you to perform sectioning along Z-axis with specified angle.

Sectional Plane — Select the plane in which you want to make the section.

Dynamic Sectioning — Select to enable you to dynamically section the part using the arrow buttons .

Reverse Direction — Select to reverse the direction in which the part is sectioned.

— Click to increment/decrement the ZX angle value and perform dynamic sectioning along the Z-axis. The sectioning increment/decrement is 10 degrees.

Note: If Dynamic Sectioning is not checked clicking on these buttons

will modify ZX Section Angle only.

ZX Sectioning Angle — Specify the ZX Section Angle where the part will be sectioned.

Range — The min and max angles are displayed.

Preview — Click to preview sectioning at specified ZX Sectioning Angle.

OK — Click to section the finished part and close the dialog.
